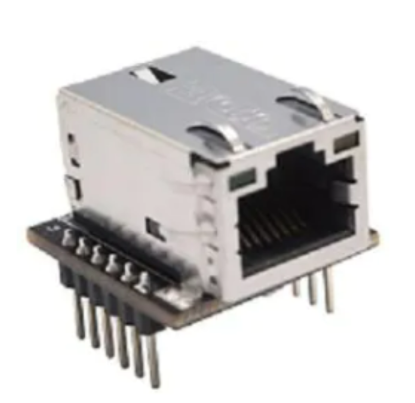

WIZ820io Original electronic components Networking Modules W5200 ioPLATFORM MODULE integrated circuits

1. Feature

 Supports 10/100 Base TX

 Supports half/full duplex operation

 Supports auto-negotiation and auto cross-over detection

 IEEE 802.3/802.3u Compliance

 Supports high speed SPI Interface (SPI mode 0, 3)

 Operates 3.3V with 5V I/O signal tolerance

 Supports network status indicator LEDs

 Includes Hardware Internet protocols: TCP, IPv4, UDP, ICMP, ARP, PPPoE, IGMP

 Includes Hardware Ethernet protocols: DLC, MAC

 Supports 8 independent connections simultaneously

 Supports Power down mode

 Supports Wake On LAN

 Supports Socket API for easy application programming

 Interfaces with two 2.54mm pitch 1 x 6 header pin

 Very small form factor: 23mm x 25mm (PCB size)

2.Process of using general SPI Master device

1. Configure Input/Output direction on SPI Master Device pins.

2. Configure nSCS as ‘High’ on inactive

3. Write target address for transmission on SPDR register (SPI Data Register).

4. Write OP code and data length for transmission on SPDR register.

5. Write desired data for transmission on SPDR register.

6. Configure nSCS as ‘Low’ (data transfer start)

7. Wait for reception complete

8. If all data transmission ends, configure nSCS as ‘High’
