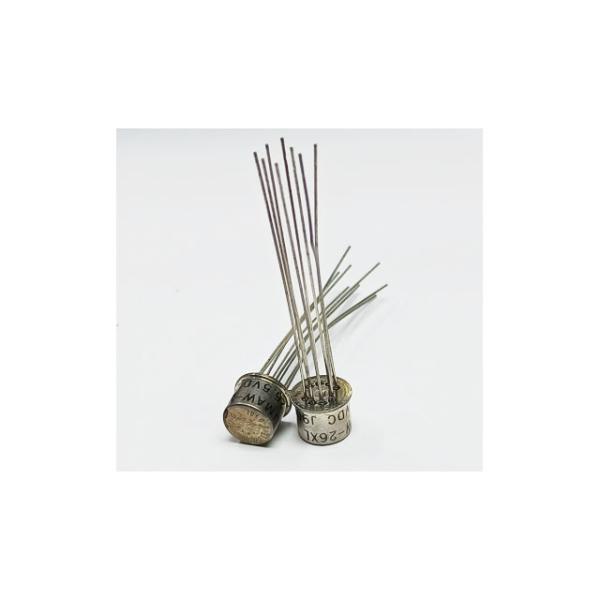

JMAW-26XL Industrial Relays 26.5V Mcro Min Relay 2 Form C (DPDT) 2 CO

FEATURES

Product Type Features

Enclosure Type Hermetically Sealed

Relay Type Military/Aerospace High Performance

Coil Latching Without

Product Type Relay

MOSFET Driver Without

Electrical Characteristics

Coil Magnetic System Non-Polarized, Monostable

Vibration 30G's, 10 – 3000Hz

Actuating System DC

Shock 75G's, 6ms

Coil Power Measurement Milliwatts

TO-5/.100 Grid Relay Input Voltage 26.5 VDC

Coil Suppression Diode Without

Coil Voltage 26.5 VDC

TO-5/.100 Grid Relay Coil Resistance 1560 Ω

TO-5/.100 Grid Relay Coil Power Rating (DC) 450 mW

Coil Polarity Protection Diode Without

TO-5/.100 Grid Relay Contact Switching Voltage (Max) 28

Contact Features

Contact Current Class Low Level – 1 A

TO-5/.100 Grid Relay Contact Arrangement 2 Form C, DPDT, 2 C/O

TO-5/.100 Grid Relay Contact Current Rating 1 A

Termination Features

Termination Type Long Leads
