SP1224-01UTG Original ESD Suppressors / TVS Diodes 1CH 100A 24VBR

Features

• ESD, IEC 61000-4-2, ±30kV contact, ±30kV air

• EFT, IEC 61000-4-4, 80A (tP=5/50ns)

• Lightning, 100A (8/20 as defined in IEC 61000-4-5 2nd edition)

• Protection for VBUS operating up to 24V

• High current handling capability for fast charging applications

• Halogen free, lead free and RoHS compliant

• Moisture Sensitivity Level(MSL -1)

Description

This SP1224 TVS diode has a lightning surge rating of 100A (8/20 as defined in IEC 61000-4-5 2nd edition) and is intended for USB VBUS protection. It provides superior protection for current intensive applications such as the USB fast charging circuits.

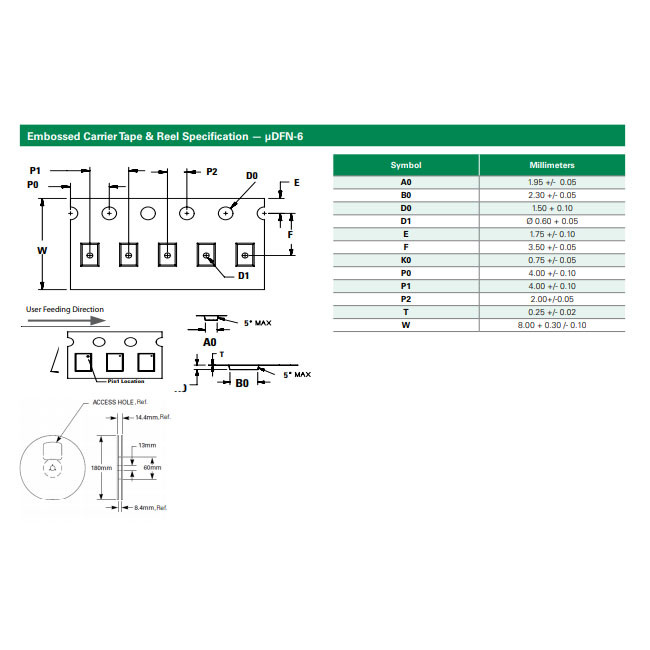

The SP1224 TVS is offered in a space saving 2.0 x 1.8 mm µDFN package with a typical height of 0.55 mm. This small form factor makes this component ideal for smart phones, tablets, and other portable electronics that are footprint challenged.
