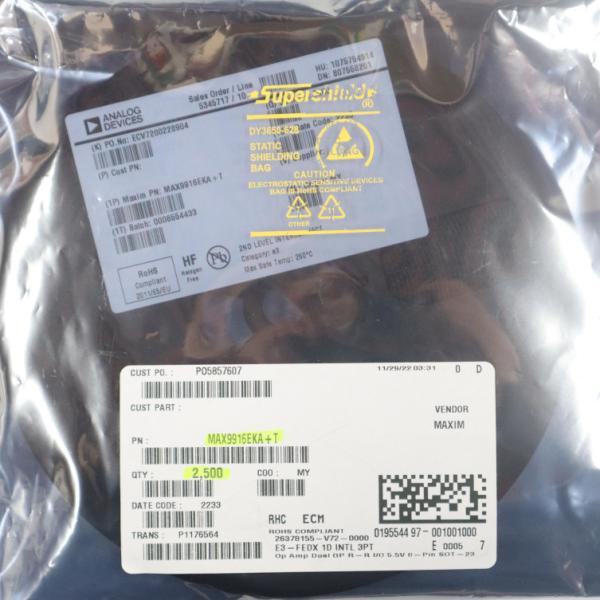

MAX9916EKA+T Op Amps Operational Amplifiers BTS500801TMAATMA1
NCP5501DT33RKG General Purpose Amplifier
General Description
The single MAX9914/MAX9915 and dual MAX9916/ MAX9917 operational
amplifiers feature maximized ratio of gain bandwidth to supply
current and are ideal for battery-powered applications such as
portable instrumentation, portable medical equipment, and wireless
handsets. These CMOS op amps feature an ultra-low 1pA input bias
current, rail-to-rail inputs and outputs, low 20μA supply current,
and operate from a single 1.8V to 5.5V supply. For additional power
conservation, the MAX9915/MAX9917 feature a low-power shutdown mode
that reduces supply current to 1nA, and puts the amplifier outputs
in a high-impedance state. These devices are unity-gain stable with
a 1MHz gain-bandwidth product.

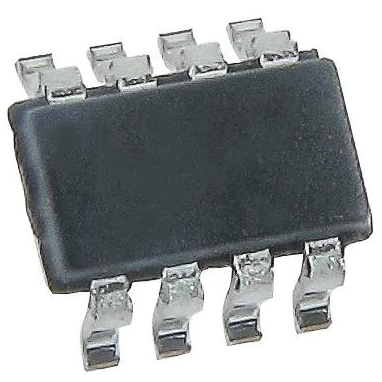

The MAX9914 and MAX9915 are available in 5-pin and 6-pin SC70
packages, respectively. The MAX9916 is available in an 8-pin SOT23
package, and the MAX9917 in a 10-pin μMAX® package. All devices are
specified over the -40°C to +85°C extended operating temperature
range.
Applications
● Portable Medical Devices
● Portable Test Equipment
● RF Tags
● Laptops
● Data-Acquisition Equipment
Features
● High 1MHz GBW
● Ultra-Low 20μA Supply Current
● Single 1.8V to 5.5V Supply Voltage Range
● Ultra-Low 1pA Input Bias Current
● Rail-to-Rail Input and Output Voltage Ranges
● Low ±200μV Input Offset Voltage
● Low 0.001μA Shutdown Current
● High-Impedance Output During Shutdown (MAX9915/MAX9917)
● Unity-Gain Stable
● Available in Tiny SC70, SOT23, and μMAX Packages
