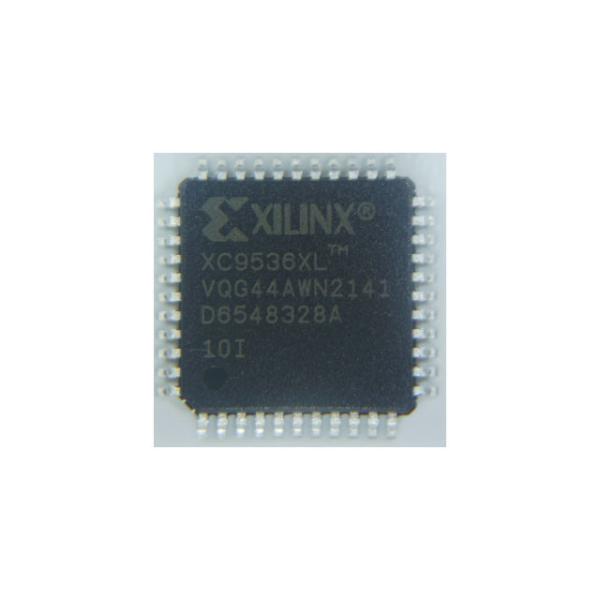

XC9536XL-10VQG44I CPLD - Complex Programmable Logic Devices 3.3V 36-mc CPLD

Features

• 5 ns pin-to-pin logic delays

• System frequency up to 178 MHz

• 36 macrocells with 800 usable gates

• Available in small footprint packages - 44-pin PLCC (34 user I/O pins) - 44-pin VQFP (34 user I/O pins) - 48-pin CSP (36 user I/O pins) - 64-pin VQFP (36 user I/O pins) - Pb-free available for all packages

• Optimized for high-performance 3.3V systems - Low power operation - 5V tolerant I/O pins accept 5 V, 3.3V, and 2.5V signals - 3.3V or 2.5V output capability - Advanced 0.35 micron feature size CMOS Fast FLASH™ technology

• Advanced system features - In-system programmable - Superior pin-locking and routability with Fast CONNECT™ II switch matrix - Extra wide 54-input Function Blocks - Up to 90 product-terms per macrocell with individual product-term allocation - Local clock inversion with three global and one product-term clocks - Individual output enable per output pin - Input hysteresis on all user and boundary-scan pin inputs - Bus-hold circuitry on all user pin inputs - Full IEEE Standard 1149.1 boundary-scan (JTAG)

• Fast concurrent programming

• Slew rate control on individual outputs

• Enhanced data security features

• Excellent quality and reliability - Endurance exceeding 10,000 program/erase cycles - 20 year data retention - ESD protection exceeding 2,000V

• Pin-compatible with 5V-core XC9536 device in the 44-pin PLCC package and the 48-pin CSP package WARNING: Programming temperature range of T_A = 0° C to +70° C

Description

The XC9536XL is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of two 54V18 Function Blocks, providing 800 usable gates with propagation delays of 5 ns. See Figure 2 for architecture overview.
