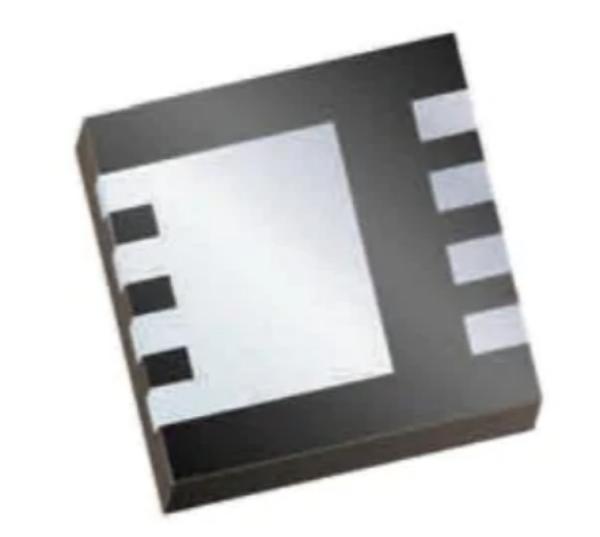

BSZ15DC02KDH Semiconductors Discrete Transistors MOSFET Original And New

Product Categories

Walton Electronics Co., Ltd.

Contact Now

Name: BSZ15DC02KDH Semiconductors Discrete Transistors MOSFET Original And New
Brand: Original
Price: 1 USD

Add to Cart

Product Attribute	Attribute Value

Product Category:	MOSFET
Mounting Style:	SMD/SMT
Package / Case:	TSDSON-8
Transistor Polarity:	N-Channel, P-Channel
Number of Channels:	2 Channel
Vds - Drain-Source Breakdown Voltage:	20 V
Id - Continuous Drain Current:	5.1 A, 3.2 A
Rds On - Drain-Source Resistance:	41 mOhms, 97 mOhms
Vgs - Gate-Source Voltage:	- 12 V, + 12 V
Vgs th - Gate-Source Threshold Voltage:	1.1 V, 1 V
Qg - Gate Charge:	700 pC, 590 pC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Pd - Power Dissipation:	2.5 W
Channel Mode:	Enhancement
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Configuration:	Dual
Fall Time:	1.4 ns, 4.7 ns
Forward Transconductance - Min:	5.5 S, 3.4 S
Height:	1.1 mm
Length:	3.3 mm
Product Type:	MOSFET
Rise Time:	2 ns, 3.7 ns
	5000
Subcategory:	MOSFETs
Transistor Type:	1 N-Channel, 1 P-Channel
Typical Turn-Off Delay Time:	12.2 ns, 11.3 ns
Typical Turn-On Delay Time:	4.9 ns, 7.4 ns
Width:	3.3 mm
Part # Aliases:	SP000961028 BSZ15DC02KDHXTMA1
Unit Weight:	0.001367 oz
