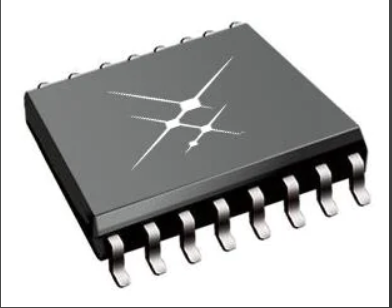

SI8233BB-D-IS Gate Drivers 2.5 kV 8 V UVLO HS/LS isolated gate
driver Power Management ICs
Description:
The Si823x isolated driver family combines two independent,
isolated drivers into a single package.
The Si8230/1/3/4 are high-side/low-side drivers, while the
Si8232/5/7/8 are dual drivers.
Versions with peak output currents of 0.5 A (Si8230/1/2/7) and 4.0
A (Si8233/4/5/8) are available.
All drivers operate with a maximum supply voltage of 24 V.
Safety Regulatory Approvals
• UL 1577 recognized • Up to 5000 VRMS for 1 minute
• CSA component notice 5A approval • IEC 60950-1, 62368-1, 60601-1
(reinforced insulation)
• VDE certification conformity • VDE 0884-10
• EN60950-1 (reinforced insulation) • CQC certification approval •
GB4943.1
Automotive Applications
• On-board chargers
• Battery management systems
• Charging stations
• Traction inverters
• Hybrid Electric Vehicles
• Battery Electric Vehicles
Specification:
| Product Category: | Gate Drivers |
| Product: | Isolated Gate Drivers |
| Type: | High-Side, Low-Side |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-16 |
| Number of Drivers: | 2 Driver |
| Number of Outputs: | 2 Output |
| Output Current: | 4 A |
| Supply Voltage - Min: | 4.5 V |
| Supply Voltage - Max: | 5.5 V |
| Rise Time: | 12 ns |
| Fall Time: | 12 ns |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 125 C |
| Series: |
Si823x |
| Qualification: | AEC-Q100 |
| Packaging: | Tube |
| Isolation Voltage: | 2500 Vrms |
| Maximum Turn-Off Delay Time: | 60 ns |
| Maximum Turn-On Delay Time: | 60 ns |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 3.5 mA |
| Operating Supply Voltage: | 9.4 V to 24 V |
| Pd - Power Dissipation: | 1.2 W |
| Product Type: | Gate Drivers |
| Propagation Delay - Max: | 60 ns, 60 ns |
| Shutdown: | Yes |
| Factory Pack Quantity: | 46 |
| Subcategory: | PMIC - Power Management ICs |
| Technology: | Si |
| Unit Weight: | 0.017990 oz |
