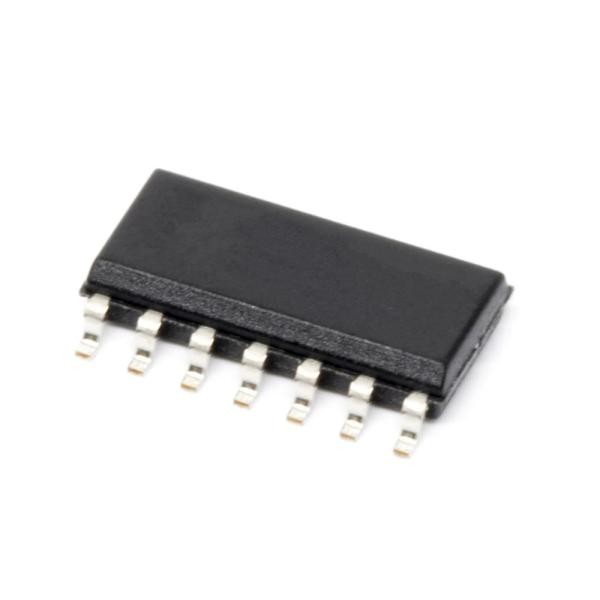

HCPL-0721 High Speed Optocouplers 25MBd 1Ch 150mA

40-ns Propagation Delay, CMOS Optocoupler

FEATURES

•+5V CMOS compatibility

• 20-ns max propagation delay skew

•High speed: 25 MBd

•40-ns max propagation delay

10-kV/μs minimum common mode rejection

• –40 to +85°C temperature range

• Safety and regulatory approvals:

– UL recognized

•3750 Vrms for 1 min. per UL 1577

• 5000 Vrms for 1 min. per UL 1577 (for HCPL-772X option 020)

– CSA component acceptance notice #5

– IEC/EN/DIN EN 60747-5-5

• VIORM = 630 Vpeak for HCPL-772X option 060

• VIORM = 567 Vpeak for HCPL-072X option 060

APPLICATIONS

• Digital fieldbus isolation: CC-Link, DeviceNet, PROFIBUS, SDS

• AC plasma display panel level shifting

• Multiplexed data transmission

•Computer peripheral interface

• Microprocessor system interface

DESCRIPTION

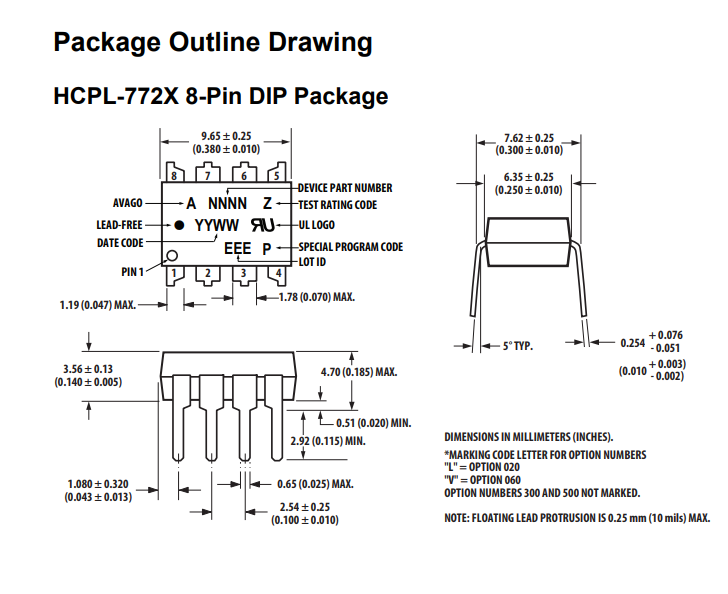

Available in either an 8-pin DIP or SO-8 package style respectively, the Broadcom HCPL-772X or HCPL-072X optocouplers utilize the latest CMOS IC technology to achieve outstanding performance with very low power consumption. The HCPL-772X/072X require only two bypass capacitors for complete CMOS compatability.

Basic building blocks of the HCPL-772X/072X are a CMOS LED driver IC, a high-speed LED, and a CMOS detector IC. A CMOS logic input signal controls the LED driver IC, which supplies current to the LED. The detector IC incorporates an integrated photodiode, a high-speed transimpedance amplifier, and a voltage comparator with an output driver.
